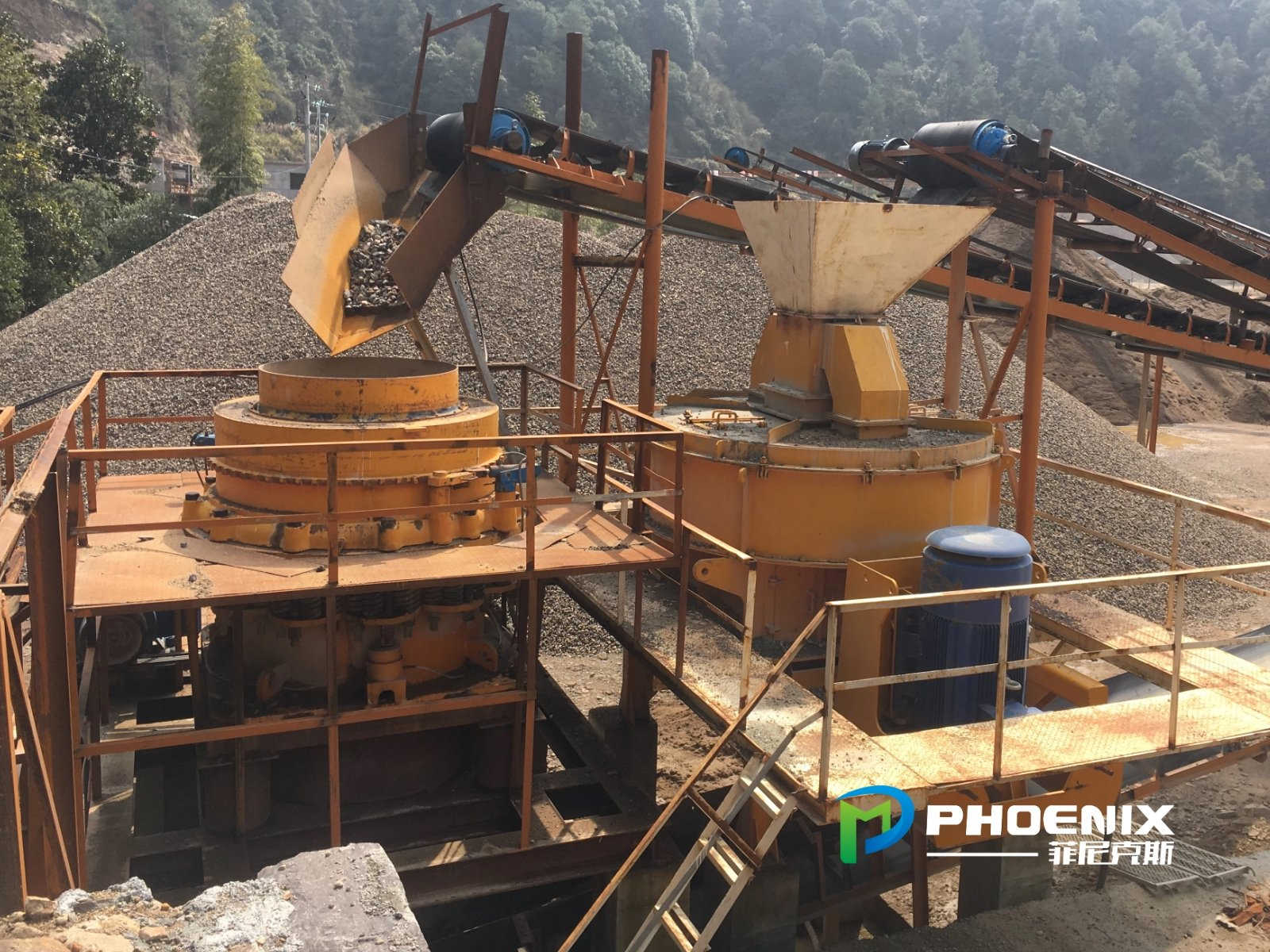

Brief introduction of dry sand production line program:
This production line is based on raw materials of 40mm or less.
The aggregate of 0-40mm is transported by the hanging feeder, the belt conveyor is transported to the vertical impact to break, and the material broken by the impact is sieved on a two-layer vibrating screen. The material larger than 5mm is returned to the impact and broken again. Form a closed loop. The 3-5mm material can be partially finished according to the discharge requirements, and some of the returned impact breaks and breaks again. The material of less than 3mm enters the coarse and fine powder separator, and the stone powder of 0-0.075mm is disposed at the branch. The material of 0.075-3mm and 3-5mm is composed of finished material pile, and pulse bag type dust collector can be selected according to environmental protection requirements.
Dry sand/mechanical sand process advantages:
(1) Fineness modulus and grading area adjustment: Sand making machine and sand stone powder separator are equipped with frequency conversion speed control system, which can adjust the production mode according to the characteristics of raw materials, and achieve the quick and convenient adjustment mechanism of sand fineness modulus and stone powder. The content is the most advanced production process in China.
(2) Adjustment of stone powder content (sand equivalent): The content of stone powder is adjusted to the requirements of use by the sand and stone separator.
(3) Good environmental performance: equipped with a special dust removal system, the dust is small, and the noise during operation is less than 90dB.
(4) Small footprint, compact production line and high degree of automation: the plane occupies 35 meters × 20 meters, and only 2 workers are required for production and operation.
Phoenix Dry Sand/Mechanical Sand Process Features:
(1) The process design is scientific and reasonable, and the quality and output of the mechanism sand are effectively guaranteed;
(2) It can crush medium, high hardness and extra hard materials;
(3) High automation configuration, minimizing the cost of human resources;
(4) The fine sand grade of the finished product is fine and the fineness modulus is adjustable;
(5) The equipment operates with low noise and less dust pollution.
