Product electronic sample:
Wheel sand washing machine parameters:
|
Model |
Cylinder |
Feed size |
Processing |
Motor |
Dimensions |
|
（mm） |
（mm） |
（Tph） |
（kw） |
（mm×mm×mm） |
|
|
XS2615 |
2600×1500 |
≤10 |
30-80 |
7.5 |
3320×2200×2670 |
|
XS3016 |
3000×1600 |
≤10 |
80—160 |
18.5 |
4500×3206×3480 |
|
XS3500 |
3500×1000 |
≤10 |
120—600 |
11 |
4420×2930×3800 |
Note: Parameters are subject to change without prior notice, please contact us.
Wheel Washer Introduction:
The XS wheel sand washing machine produced by Phoenix is used in the sand making process to wash the dirt and dust in the sand to achieve the purpose of cleaning the sand. It can also be used for sanding in mineral processing, or the like. . In the production process, the transmission part is isolated from water and sand, and the failure rate is lower than that of the spiral sand washing machine. It is the choice for the upgrading of the domestic sand washing industry.
Wheel washing machine principle:
During operation, the motor rotates slowly through the V-belt, reducer and gear, and the impeller rotates slowly. The gravel has a feed trough into the washing tank, which is tumbling under the impeller and grinds each other to remove impurities covering the surface of the gravel. Destroy the water vapor layer of the coated sand to facilitate dehydration; at the same time add water to form a strong water flow, take away the foreign matter with small impurities and small specific gravity in time, and discharge it from the overflow port to complete the cleaning. The clean sand is taken away by the blades, and finally the sand is poured from the rotating impeller into the discharge chute to complete the cleaning of the sand.
Wheel sand washing machine performance characteristics:
First, the structure is simple and the operation is stable.
Second, the bearing and water, material separation, to avoid premature damage caused by pollution rust.
Third, it is suitable for a variety of work environments.
Fourth, the loss of materials washed, high efficiency of washing, can fully meet the requirements of high-grade materials.
5. The service life is relatively long and there are almost no wearing parts.
Sixth, in rare cases, maintenance is required, so the cost can be greatly reduced.

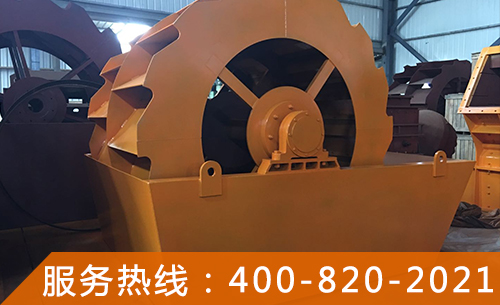

Wheel sand washing machine factory pictures:

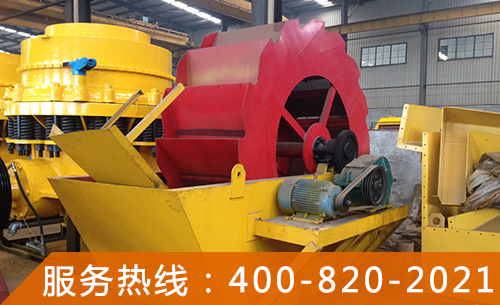

Wheel sand washing machine delivery pictures:

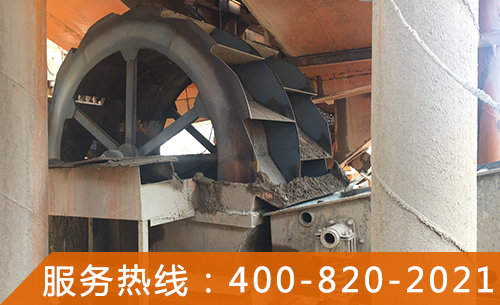

Wheel sand washing machine scene picture:
Wheel Washer Video: waiting for update
Wheel sand washer price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
Wheel Washer Purchase Phone:+86-21-33781259 Email: info@pmpsj.com
