Product electronic sample:
CF impact crusher product parameters:
| Model | Rotor diameter(mm) | Dimension of inlet and outlet (mm*mm) | Maximum feed size (mm) | Processing capacity (t/h) | Motor power (kw) | Weight(t) | Outline size (mm) |
| CF250/CF250C | 1200 | 1360×972 | ≤750 | 180-300 | 160-200 | 18 | 3515×2430×2828 |
| CF400/CF400C | 1300 | 1360×975 | ≤950 | 280-500 | 200-250 | 21 | 3669×2430×2940 |
Note: If the parameters are updated, please contact us without further notice.
Introduction to CF Impact Crusher:
CF400 impact crusher is a new generation of impact crusher independently developed by Phoenix based on the principle of the newer crusher, which absorbs the internationally advanced machine core of the same model and combines the specific working conditions of the domestic sandstone industry. It uses a relatively good manufacturing technology, unique structural design, can process out-going cubes, no tension and crack products, the grain shape is quite good.
CF impact crusher working principle:
The Phoenix Impact Crusher is a crushing machine that uses impact energy to break up materials. When working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-backing plate. The process is repeated until the plate hammer action zone is repeated. The process is repeated from large to small, and the material is broken into the required particle size and discharged from the discharge port. Adjusting the gap between the counter-rack and the rotor can achieve the purpose of changing the material discharge size and material shape.
CF impact crusher performance characteristics:
The Phoenix CF400 impact crusher is unique in structure, equipped with high-chrome plate hammer and unique counter-attack liner; suitable for hard rock crushing, high efficiency and energy saving; adjustable grain size, which can simplify the crushing process, and has large crushing ratio and high crushing efficiency. The product has the advantages of cube shape and selective crushing.

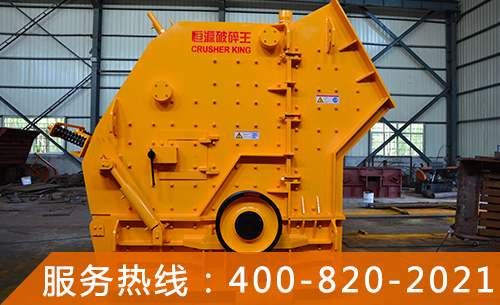

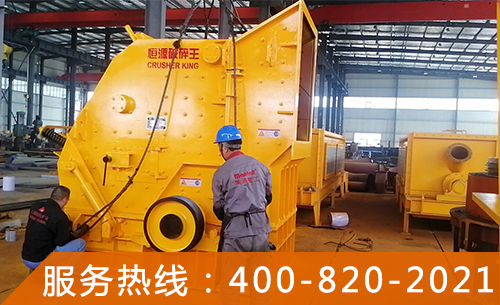

CF impact crusher factory photo:
CF impact crusher delivery photos:

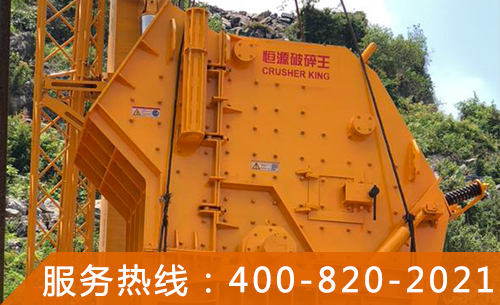

CF impact crusher site photo:
Counterattack Video: To be updated
Counterattack the price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
CF impact crusher purchase phone:+86-21-33781259 Email: info@pmpsj.com
