Product electronic sample:

PF counterattack parameters:

Model	Rotor diameter (mm)	Dimension of inlet and outlet (mm*mm)	Maximum feed size (mm)	Processing capacity (t/h)	Motor power (kw)	u7彩票cc Weight (t)	u7彩票cc Outline size (mm)
PF-1007	1000×700	400×730	300	25-45	30--55	9.5	2400×1558×2660
PF-1010	1000×1050	400×1080	350	50-80	55-75	12.2	2400×2250×2620
PF-1210	1250×1050	400×1280	350	80-120	110-132	14.2	2690×2338×2890
PF-1214	1250×1400	400×1430	350	100-160	132-160	18.5	2690×2688×2890
PF-1310	1300×1050	490×1170	400	80-140	110-160	13.5	2780×2478×2855
PF-1315	1320×1500	860×1520	500	150-220	220	20.9	3350×2710×2670
PF-1316	1300×1600	858×1650	460	150-200	200	20.5	3096×3273×2667
PF-1415	1450×1500	900×1650	500	200-260	260-280	27.1	3400×3500×3280
PF-1515	1500×1500	980×1610	500	220-280	315	30.5	3950×3350×3055
PF-1500	1530×1500	1530×500	300	230-320	220-315	28	3300×3100×3060

Note: If the parameters are updated, please contact us without further notice.

Introduction to PF counterattack:

The PF series impact crusher is a product developed by the Phoenix R&D department with its own advantages. This product can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with a feed particle size not exceeding 500mm and compressive strength not exceeding 350MPa. It has finished products into cubes, no tension and cracks, and has a large crushing ratio. High crushing efficiency and convenient maintenance.

PF counterattack works:

The PF impact crusher is a crushing machine that uses impact energy to break up materials. When it is working, the rotor rotates at high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer hammer action area, the process is repeated, and the process is repeated from large to small, and the material is broken into the first, second and third counter-attack chambers until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the counter-rack and the rotor can achieve the purpose of changing the material discharge size and material shape.

PF counterattack performance characteristics:

1. The counter-breaking feed inlet is large, the crushing chamber is high, the material hardness is high, the block size is large, and the product powder is less;

2, compact structure, strong machine rigidity, the rotor has a large moment of inertia;

3. The backlash plate and the plate hammer gap can be easily adjusted, and the discharge granularity and particle shape are well controlled;

4. No key connection, convenient maintenance, economical and reliable;

5, high chrome plate hammer, impact resistance, anti-wear, impact force;

6. Full crushing function, high productivity, small wear and tear, and high comprehensive efficiency.

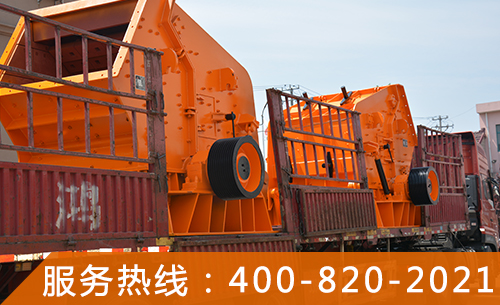

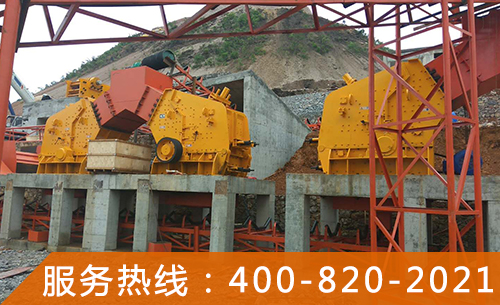

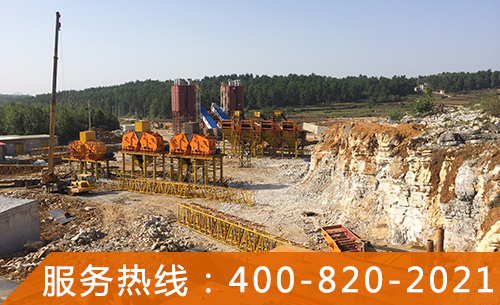

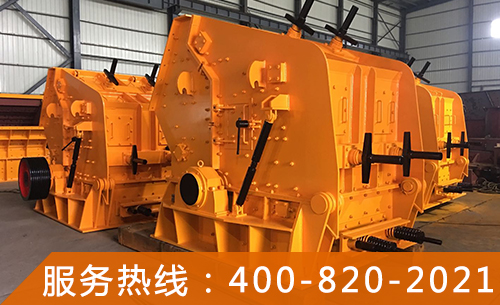

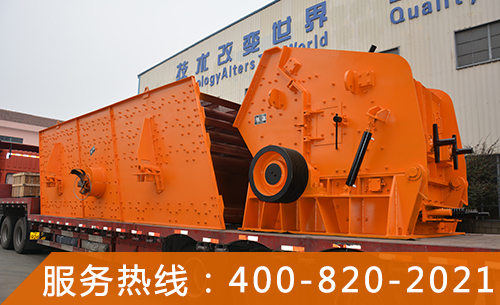

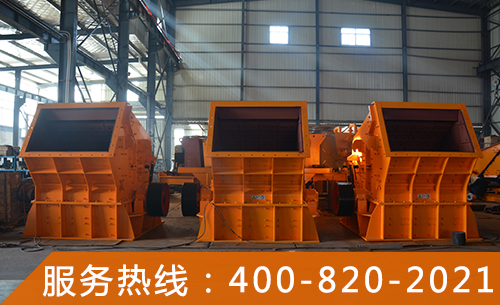

PF counterattacks the factory picture:
