On May 23 and May 24, 2019, the company shipped the set of 19 sets of sandstone production line equipment purchased by Liaoning customers twice. The main equipments are:
1. One PV-912 jaw crusher
2. Two PF-1515 impact crushers
3, PX-1616 high fine crusher two
4, 2YK-2160 vibrating screen
5, 2YK-2475 four-layer vibrating screen two
6, 4YK-2475 four-layer vibrating screen two
7. One ZSW-600×1300 vibrating feeder
8, GZG-703 hanging feeder four
9, GZG-1253 hanging feeder four

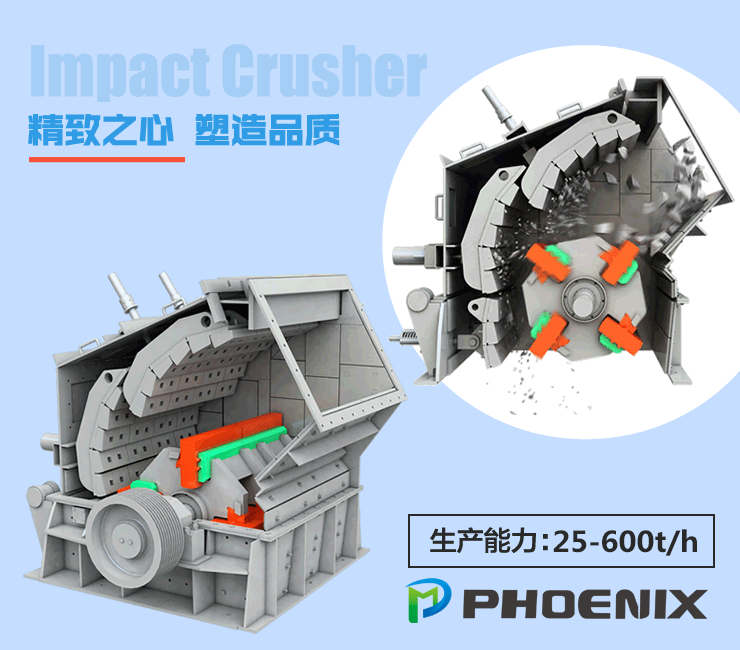

The photo of the crusher is as follows:
The introduction of the impact crusher in the delivery of this sandstone production line equipment:
The impact crusher is a product developed by Jiangsu Phoenix Machinery Co., Ltd. with its own advantages. This product can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with a feed particle size not exceeding 500mm and compressive strength not exceeding 350MPa. It has finished products into cubes, no tension and cracks, and has a large crushing ratio. High crushing efficiency and convenient maintenance.
Impact crusher working principle:
The impact crusher is a crushing machine that uses impact energy to break up materials. When it is working, the rotor rotates at high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer hammer action area, the process is repeated, and the process is repeated from large to small, and the material is broken into the first, second and third counter-attack chambers until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the counter-rack and the rotor can achieve the purpose of changing the material discharge size and material shape.
Impact crusher performance characteristics:
1. The backlash plate and the plate hammer gap can be easily adjusted, and the discharge granularity and particle shape are well controlled;
2. No key connection, convenient maintenance, economical and reliable;
3, high chrome plate hammer, impact resistance, anti-wear, impact force;
4. Full crushing function, high productivity, small wear and tear, and high comprehensive efficiency.
5. The counter-breaking feed inlet is large, the crushing chamber is high, the material hardness is high, the block size is large, and the product powder is less;
6, compact structure, strong machine rigidity, the rotor has a large moment of inertia;
Impact crusher model and parameters:
(Identify the QR code to get the model and parameters)
Counter-crusher purchase accessories guide:
